Shree - Most Advanced ICU Bed

Bed with Tech genius

Shree range of beds areinfluenced by its primitive meaning. It is designed to make the hospital room aesthetically appealing. Its sharp features gives it a modern touch while soft curves makes it patient friendly. The bed is designed for patients safety and making the caregivers life easier.

60601-2-52

Bed is Designed and manufactured as per IEC 60601-2-52 Norms

Modern silhouette, ingenious looks

Introduction and design

‘SHREE’ is designed to make the hospital room aesthetically appealing. its sharp features gives it a modern touch while soft curves makes it patient friendly.

Key Features

30° pause

2 Second pause at 30°

Advanced movement pausing is designed to give a pause when the backrest reaches 30 degree for an easy and quick indication for the caregiver and the patient.

Ultra Low height

Helps in fall reduction

The lowest height is 325 mm. Makes it easier to get in and out of bed. Also reduces the chances of the patient falling from the bed. Easy accessibility for the high low adjustment is a present button option in the control panel.

Examination Height

Makes daily examination and Utility easier

This preset button will take the height that is ideal for the caregivers to take care of the patient. The patient can be examined and treated without straining their back.

Transport Height

Helps in easier transport

Just press a button to take the bed height suitable and safe for transportation through the hospital.

Designed for a Seamless Interaction

Preset positions for emergency situations

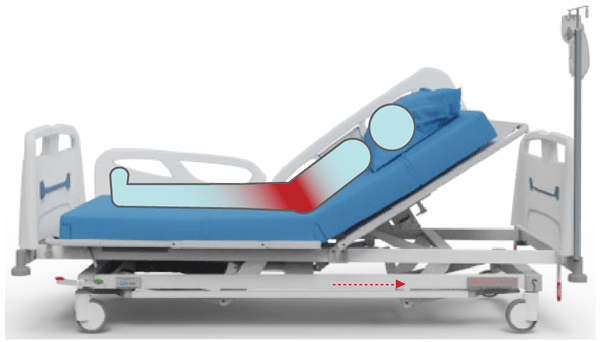

Pelvic pressure reduction

While inclining the backrestupwards the backrest will imultaneously move back. This will reduce the pressure on the pelvic region, helping in prevention of pressure injuries.

Shock position

The patient is placed in a flat trendelenburg position in an emergency. It involves placing the patient’s head down and elevating the feet, resulting in their whole body sloping down with the feet at the highest end.

CPR height position

Attains CPR height of 450 mm with a single button.

Cardiac chair position

Chair positionwith the help of a single button helps in speedy recovery & early mobility in patients

Smart features for all your needs

Manual CPR lever

Manual quick relaye will lower the backrest manuallyin case of emergency.

Integrated Urine bag hook on the side rails

For easy hanging of urine bags.

Angle Indicator

The inclination indicator shows the inclination angle of the different bed positions.

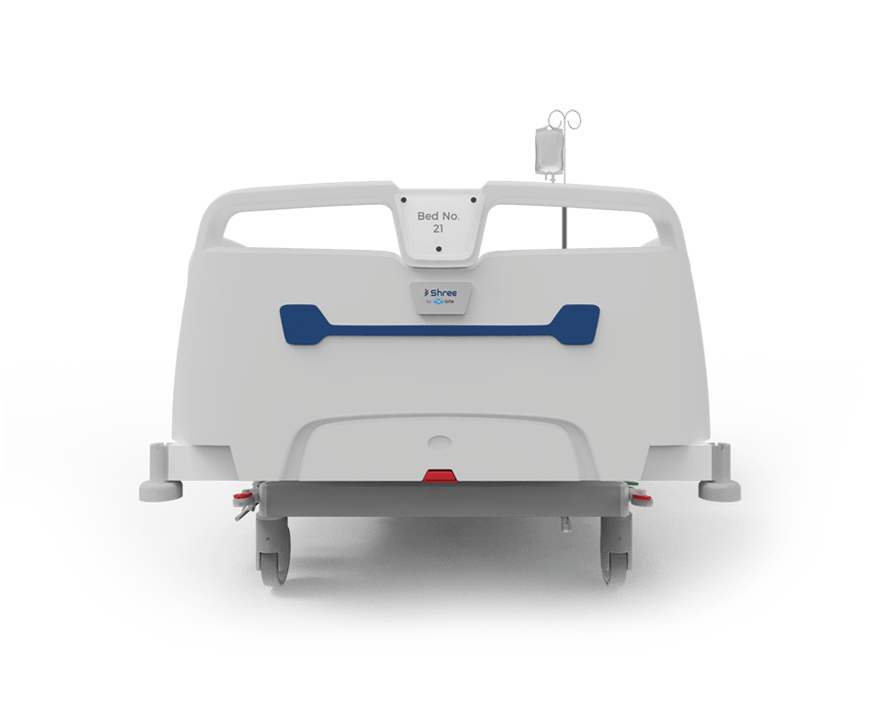

Dedicated Bed numbering space

A dedicated place to put the bed and patient’s details for clarity and hasslefree identification.

Pushlock for head and foot panel

To unlock and remove them when required

Intuitive
Operations

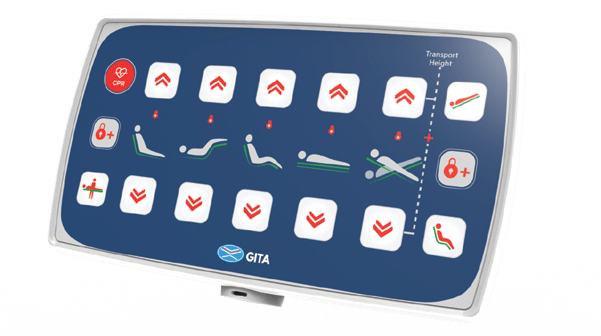

Nurse panel

Exclusive integrated control panel in the side panel with an optional Bluetooth enabled control.

Back Incline
Trendleberg & Reverse - Trendleberg
Transport height
Legs support
Shock position
Examination height
Lock Settings
Bed height
Chair position
Single button CPR
Safe height light indication

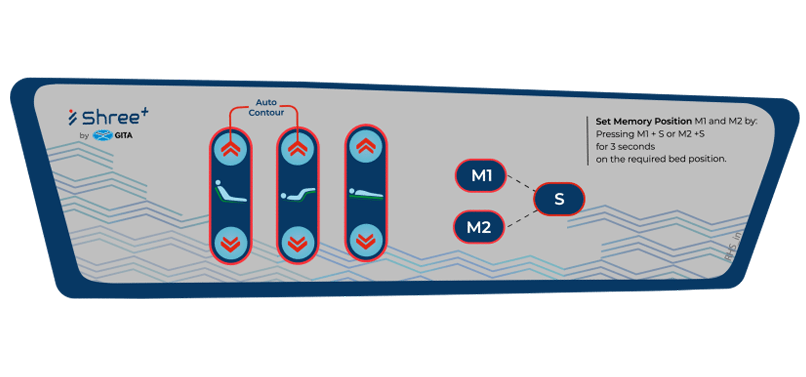

Patients panel

Exclusive integrated control panel in the side panel with an optional Bluetooth enabled control.

Back Incline
Legs support
Bed height
Customizable Memory postions
Customizable Memory postions

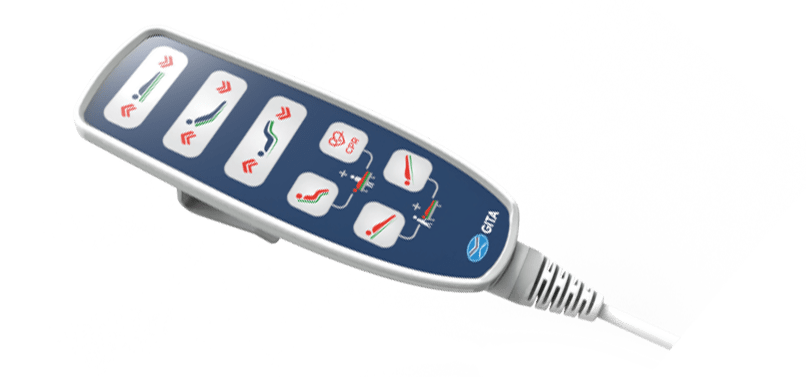

Hand held remote

An external remote control unit

Back Incline
Trendleberg & Reverse - Trendleberg
Transport height
Legs support
Shock position
Examination height
Bed height
Chair position
Single button CPR

Common
Optional controls

Nurse panel

Nurse control with

Components & Accessories

Common Accessories for &

Corner Buffer
Polymer molded side rails full length covered
Polymer Molded Head & Foot Panel
Aluminum Mechanism
SS saline pole
Emergency quick release
Urine Bag
Battery Backup

Options for Castors

125mm twin wheel castors with diagonal brakes
125mm central locking castors

Additional features

Oxygen B type arrangement (SS 304)
Bed extension
ABS bed board
CT-Scan holder
Under bed light
Sanatizer bottle holder

Technical Specifications

Length	2150mm
Width	1050
Height	325-750 mm (central locking castors)
Backrest	0 to 70°
Kneerest	0 to 30°
Trendelberg/ Rev. Trendelberg	±12°
Weight bearing static capacity	250 KG
